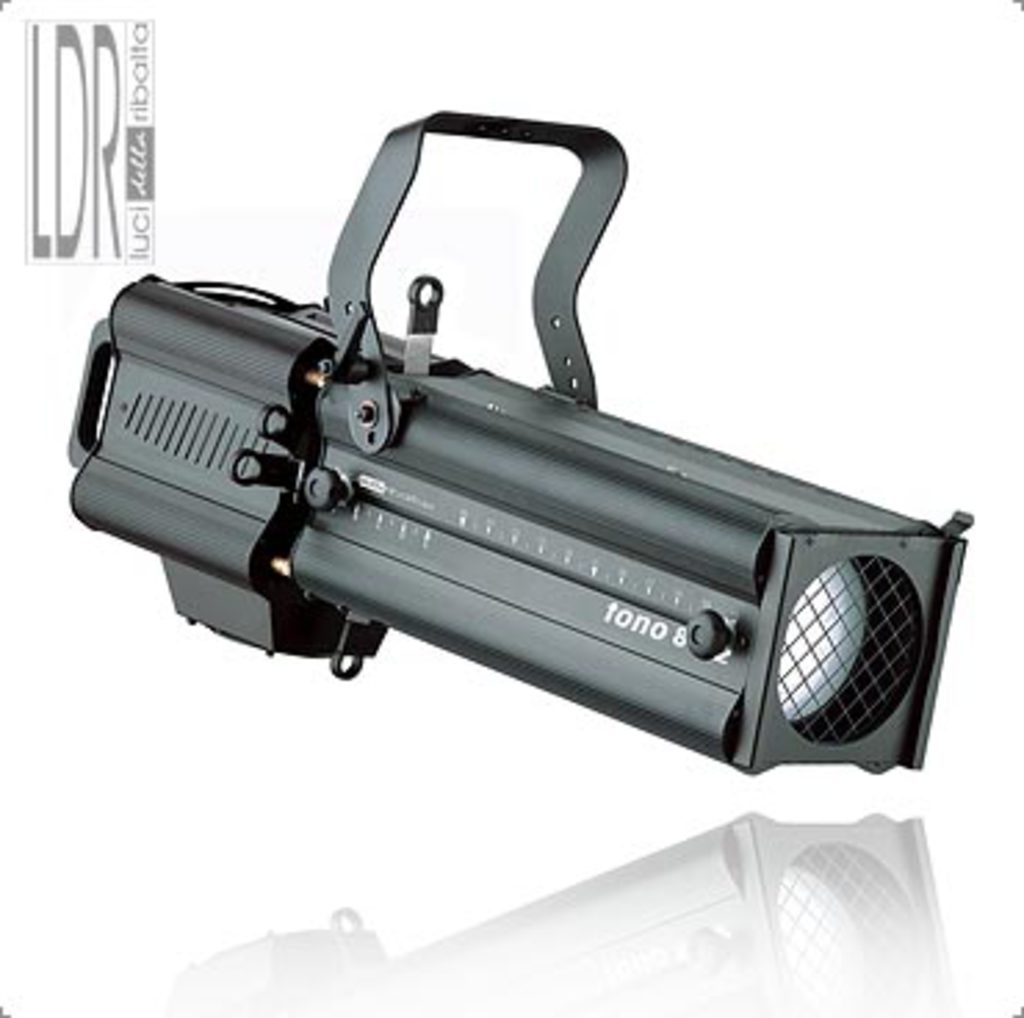

Tono 8/22



This powerful 2KW narrow-angle profile spotlight is designed for use in larger venues which demand exceptional

beam quality and gobo projection. In addition to a double condenser optical system, features include an 8°-22°

zoom focus, rotating gate, a cranked fork and a double-micro switch interlock for safe lamp replacement.

A color frame, safety guard, 4 beam shutters and 2m mains cable are also supplied as standard.





Technical Details



- Color frame

- Safety guard

- Iris diaphragm

- Gobo holder A/B size

- Hook clamp HD

- Alu-grip clamp

- Safety bond

- Xpress 19

- Mounting plate 185x185mm



Specification



Optical System: Double condenser + zoom

Reflector: 68mm dia. Aluminum

Micro switch: Double-pole

Color: Gel Dimension 185x185mm

Throw: 6-30m

Beam angle: 8°-22°



Downloads



- Tono 8/22 pdf data sheet.

- Full catalogue 2012.

- Tono 8/22, hoja tecnica, español.
