ELATION
Show Designer 1
Show Designer 1
Elation Intelligent Lighting Controllers Part 1
THE AFFORDABLE ALTERNATIVE FOR PROFESSIONAL DMX LIGHTING CONTROL!
The Show Designer 1 offers all the same features as the popular Show Designer plus
added features to make lighting control and show designing even easier!
MAIN FEATURES
- PAN/TILT Joystick
- Controller comes “Tabletop Style”–Includes removable rubber rails to fit standard
19-inch rack mount
- Control a wide variety of DMX intelligent lighting fixtures
- Large library of fixture settings for many different brands of lighting equipment
- Control up to 512 channels (USITT DMX-512 compatible)
- Control up to 16 large fixtures (up to 32 channels each) or 16 groups of smaller
fixtures
- Hold up to 1024 scenes, 512 presets, 256 chases and 256 shows
- Fixtures and memories are quickly selectable from an array of 16 switches
- Software updates can be easily downloaded from this web page.
- MIDI Capable

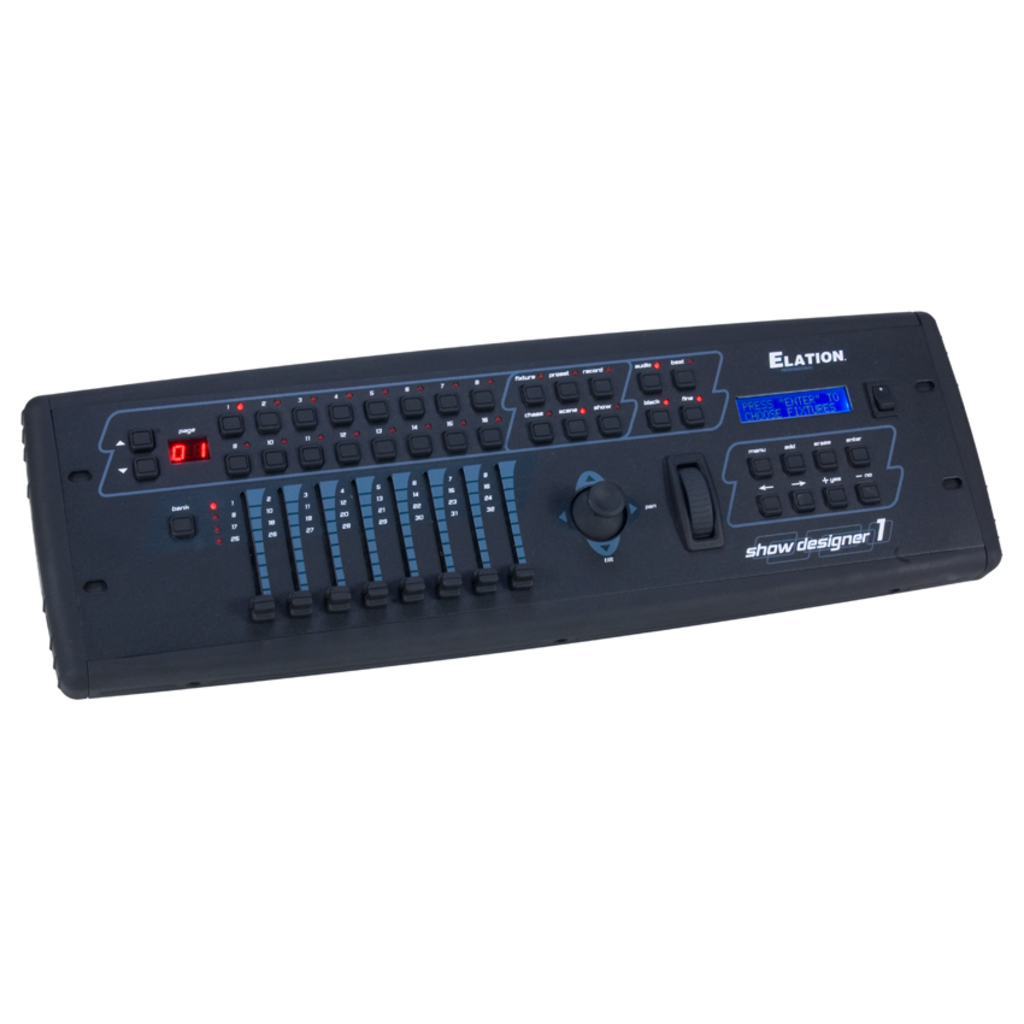

FRONT PANEL
- 8 faders allow direct control of channel settings for 32 channel fixtures using a
bank switch
- Large rotary wheel for data entry
- Joy stick for pan and tilt control
- Pan and tilt can also be controlled using a standard PC trackball/keyboard
(sold separately)
- 32 character backlit LCD display for easy programming
REAR PANEL
- 3 pin XLR connector for DMX-512 output
- Polarity switch to accommodate different types of cable requirements
- MIDI In & Out
- Audio input
- RS232 port for trackball or pc connection
- Power input: 120V DC 9V power supply included
- Dimensions: 19” x 5.25” x 4.75” - Standard 19” rack mount, 3 rack spaces
- Weight: 7 lbs.
Downloads
- Show Designer Back-up Software
- Show Designer 1 User Manual (Spanish)
- Show Designer 1 User Manual v3.19
- Show Designer 1 Software v3.19
