Rayzor Q12

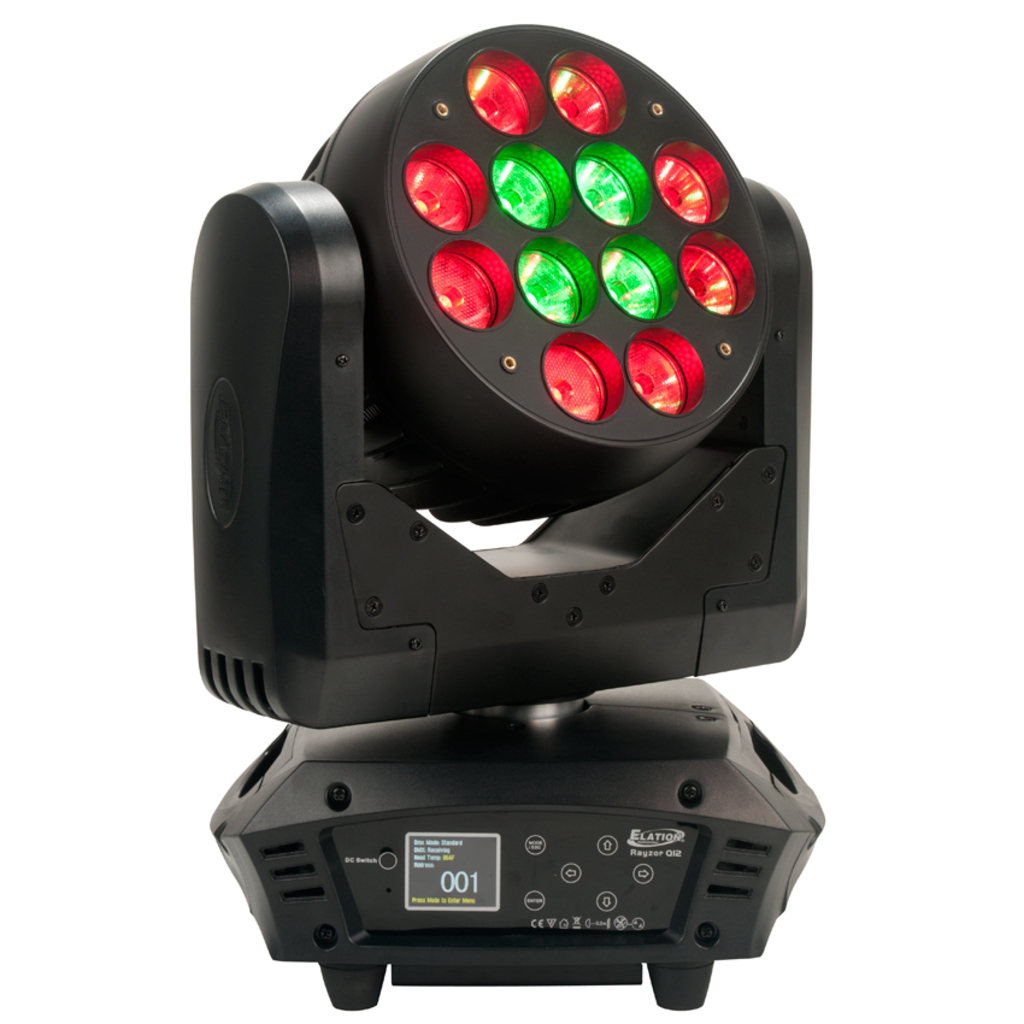

Elation Professional - Rayzor Q12



The new Rayzor Q12 features (12) 15W Quad Color RGBW LEDs, high speed 16-bit resolution movement, color mixing, rainbow effect, a 7° to 14° field angle range, 6 zone chase effects, 8 auto program chase effects, flicker free operation for TV and Film, 5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v). Optional accessories for the Rayzor Q12 include a snoot lens cover and diffusion filter holder.



FEATURES

- Pan: 540° / 630°/ 540° - 90° Offset

- Tilt: 270° / 240°

- High Speed Adjustable 16-Bit Resolution Movement

- 6 Zone Chase Effects

- 8 Auto Program Chase Macros

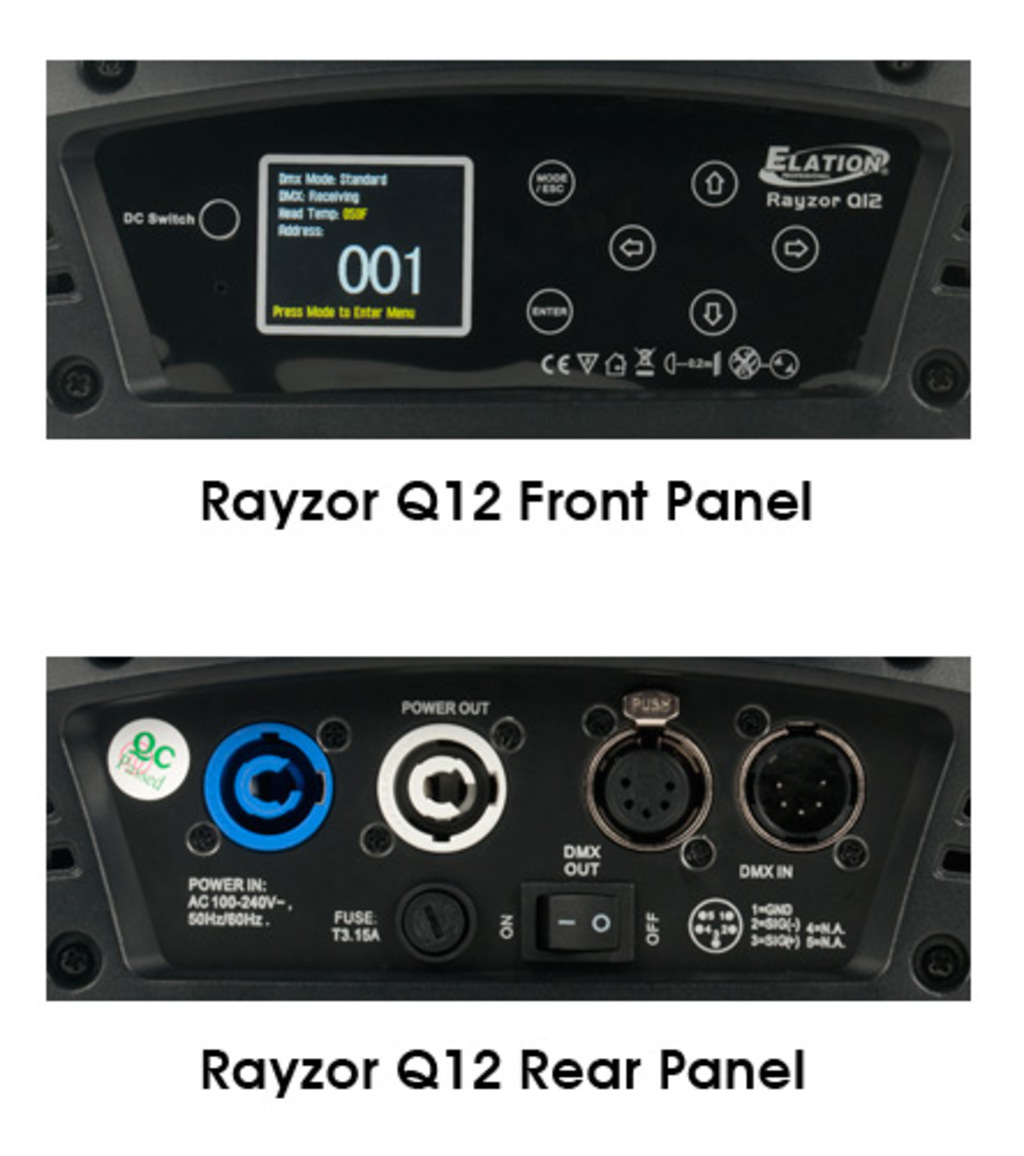

- 6 Button Touch Control Panel

- Omega Bracket Mounting (2x 107mm)

- Flicker Free Operation for TV and Film

- Full Color 180° Reversible Menu Display

- Microphone for Sound Activated Programs

- Rechargeable Backup Battery for Menu Display

- Stand Alone Operation with Master/Slave Function

- Software Upload via Optional External DMX Accessory



SOURCE

- (12) 15W RGBW QUAD COLOR LED

- 100,000 Hours Average Life



PHOTOMETRICS



- Max 5,840 LUX @5M

- 7° to 14° Field Angle Range



EFFECTS

- Color Mixing

- Rainbow Effect

- Dimming: 0% - 100% + Blackout for All Four Colors

- Strobe: 1 – 18 Flashes Per Second

- Pulse Effect



CONTROL / CONNECTIONS



- 3 DMX Channel Modes (15/17/37)

- 5pin DMX In/Out

- powerCON Power In/Out



SIZE / WEIGHT

- Length: 11.7” (295.5mm)

- Width: 8.5” (214mm)

- Vertical Height: 15.7” (397mm)

- Weight: 22 lbs. (10kg)



ELECTRICAL / THERMAL

- 240W Max Power

- AC 100-240V - 50/60Hz

- -10°C/14°F to 45°C/113°F



APPROVALS / RATINGS

- CE Approved

- cETLus Approved

- IP20 Rated

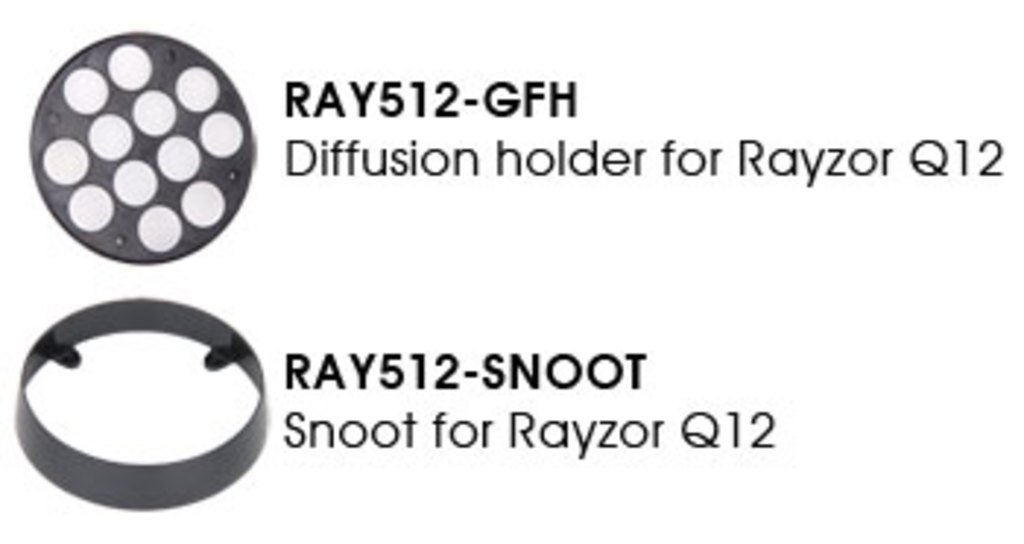

OPTIONAL ACCESSORIES

- Snoot Lens Cover

- Diffusion Filter Holder



Downloads

- CAD File

- User Manual

- Dimensional Drawings

- DMX Chart

- Photometric Data
