EPV762 MH



Part of the EPV Series

Introducing the (EPV) Elation Pro Video Series

High Res LED Moving Head Video Panel

Innovative, Creative and Professional LED Video Product Solution

Ideal for Event, Display and Stage

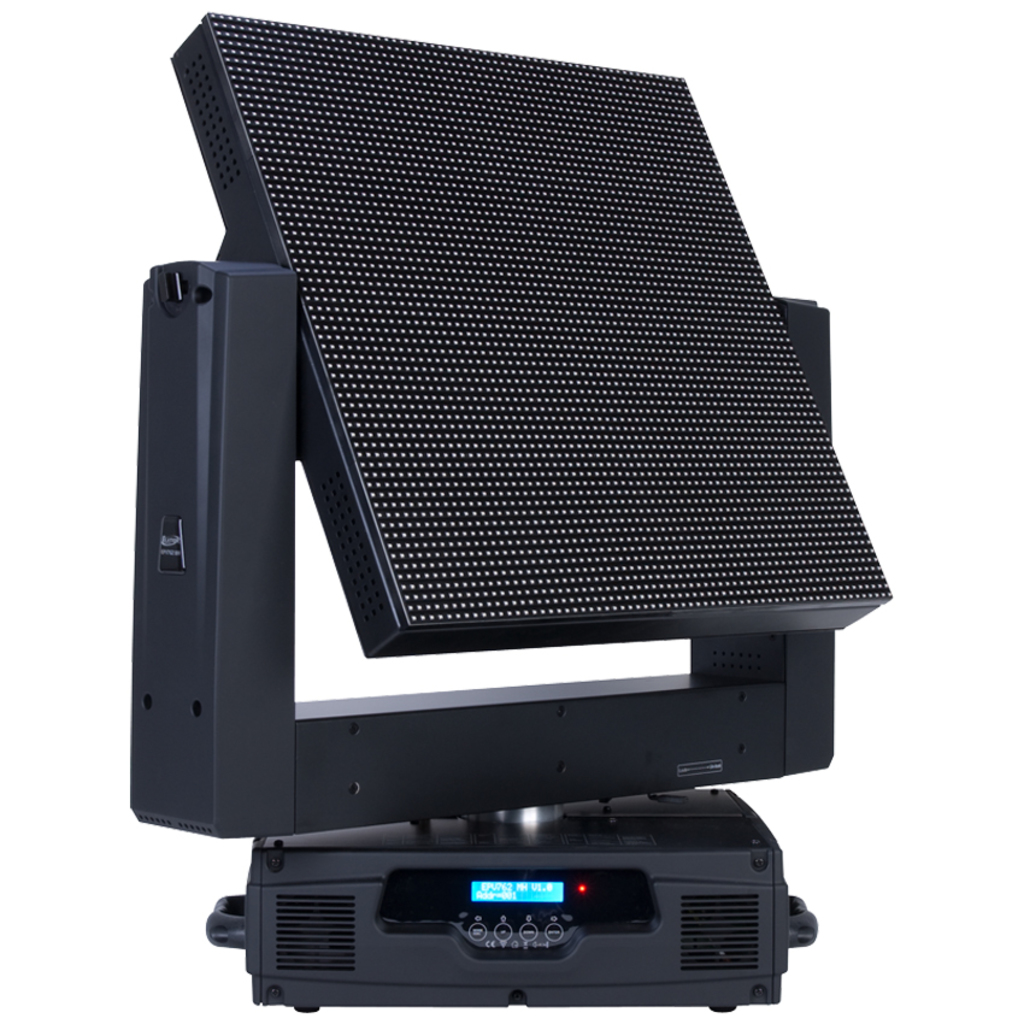

Elation Professional EPV762 MH



Features

- 3-in-1 3528 SMD LED

- 7.62mm pixel pitch

- 2,000hz refresh rate

- 540 x 265 degree pan / tilt

- Pan / Tilt Lock

- 16-Bit Processing

- 2,000 NITS

- 3pin & 5pin DMX Inputs for Pan/Tilt Control

- Ethercon In/Out for Video Signal

- powerCON In/Out for power link

- 6m min. Viewing Distance

- 17,222 pixels per sq mtr

- cETLus Approval

- Indoor rated

- 100-240v built in psu

- 350watts (230w avg)

- Frame Size: 488mm x 488mm (19.2” x 19.2”)

- Pixels Per Panel: 64 x 64 (4,096 pixels total per panel)

- 53lbs / 24kg

- For use with EPV VSC or EPV Image VSC Video Processor

- cETLus approved



Downloads

- Cut sheet

- User Manual

- CAD File

- EPV Series Brochure

- LED Manager 2010 Quick Start Manual
