ELATION
Design Wash LED Zoom
Design Wash LED Zoom

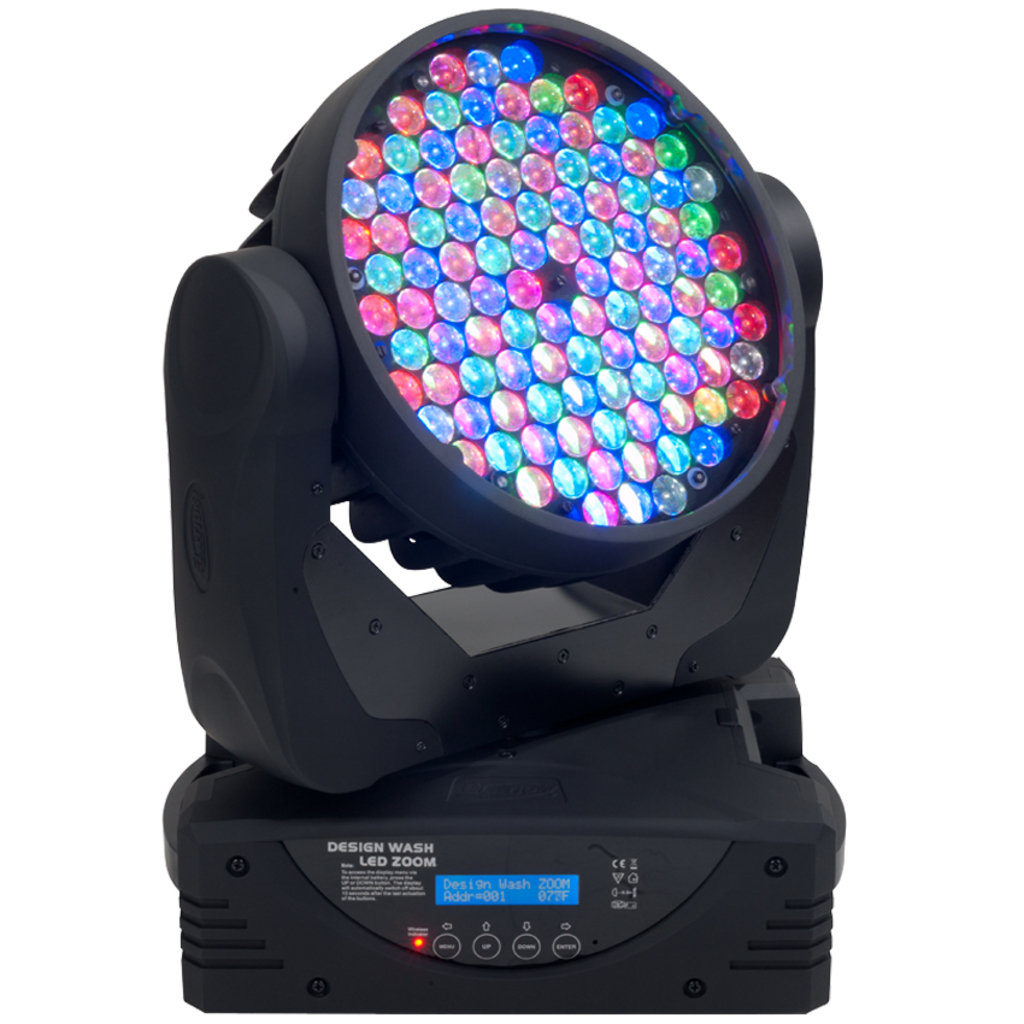

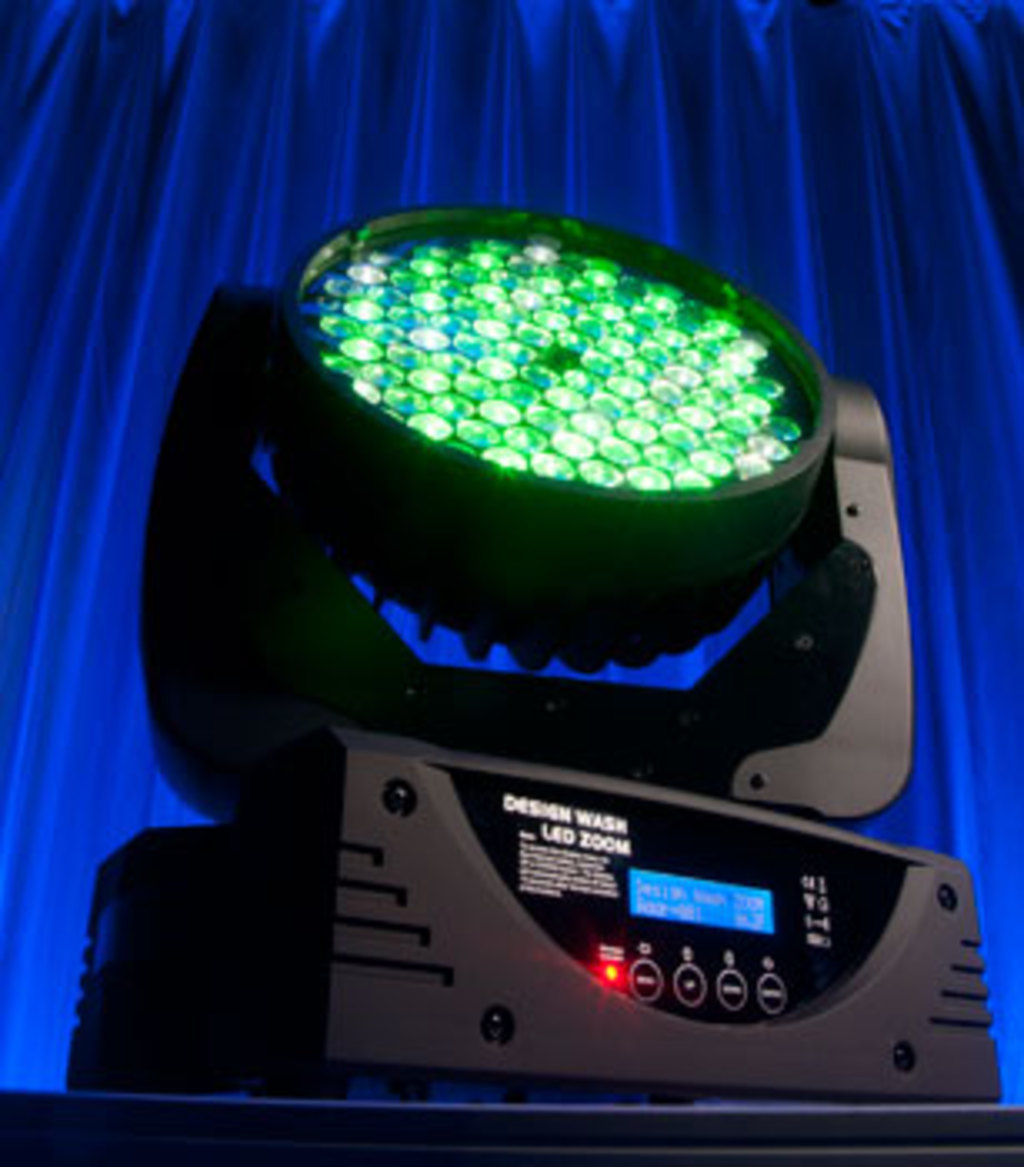

The new ELATION PROFESSIONAL DESIGN WASH LED ZOOM is an IP20 rated high output
pro grade moving head wash fixture featuring (108) 3W Osram LEDs consisting of 40 Red, 28 Green,
30 Blue, and 10 White, a 7 - 30 degree beam angle zoom range, high speed Pan and Tilt movement
with 16-bit resolution, color mixing and rainbow effect, 7 internal auto programs, LCD menu display
with 4 button control panel, flicker free operation for TV and Film, 3 & 5pin DMX connections, a low
power consumption of 320W (at full power) and a multi-voltage universal auto switching power supply
(100-240v 50/60Hz). The DESIGN WASH LED ZOOM is also available with a white painted exterior
(SKU# DWZ070) and optional accessories include a wireless DMX receiver and ELATION E-Loader
firmware upgrade device.
FEATURES
- Pan: 540° or 630° (User Selectable)
- Tilt: 265°
- High Speed 16-Bit Resolution Movement
- 7 - 30° Beam angle Zoom Range / 13-40 field angle
- 7 Internal Auto Programs
- 4 Button LCD Control Panel
- Single Omega Bracket Mounting
- Flicker Free Operation for TV and Film
- Microphone for Sound Activated Programs
- Stand Alone Operation with Master/Slave Function
- Software Upload via optional E-Loader device
SOURCE
- 108) 3W OSRAM LEDs (40 Red, 28 Green, 30 Blue, and 10 White)
- 50,000 Hours Average Life
PHOTOMETRICS
- Pending
EFFECTS
- Color Mixing
- Rainbow Effect
- Dimming: 0% - 100%
- Strobe: 1 – 18 Flashes Per Second
- Pulse Effect
CONTROL / CONNECTIONS
- 14 DMX Channels
- 3 & 5 pin DMX In/Out
SIZE / WEIGHT
- Length: 13.1” (332mm)
- Width: 8.7” (220mm)
- Vertical Height: 17.5” (445mm)
- Weight: Pending
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- Power Consumption: 320W (at full power)
- -10°C/14°F to 45°C/113°F
APPROVALS / RATINGS
- CE Pending
- cETLus Pending
- IP20 Rated
WHITE PAINTED EXTERIOR
- SKU# DWZ070
OPTIONAL ACCESSORIES
- Internal EWDMX Receiver
- E-Loader Firmware Upgrade Device
