ELATION

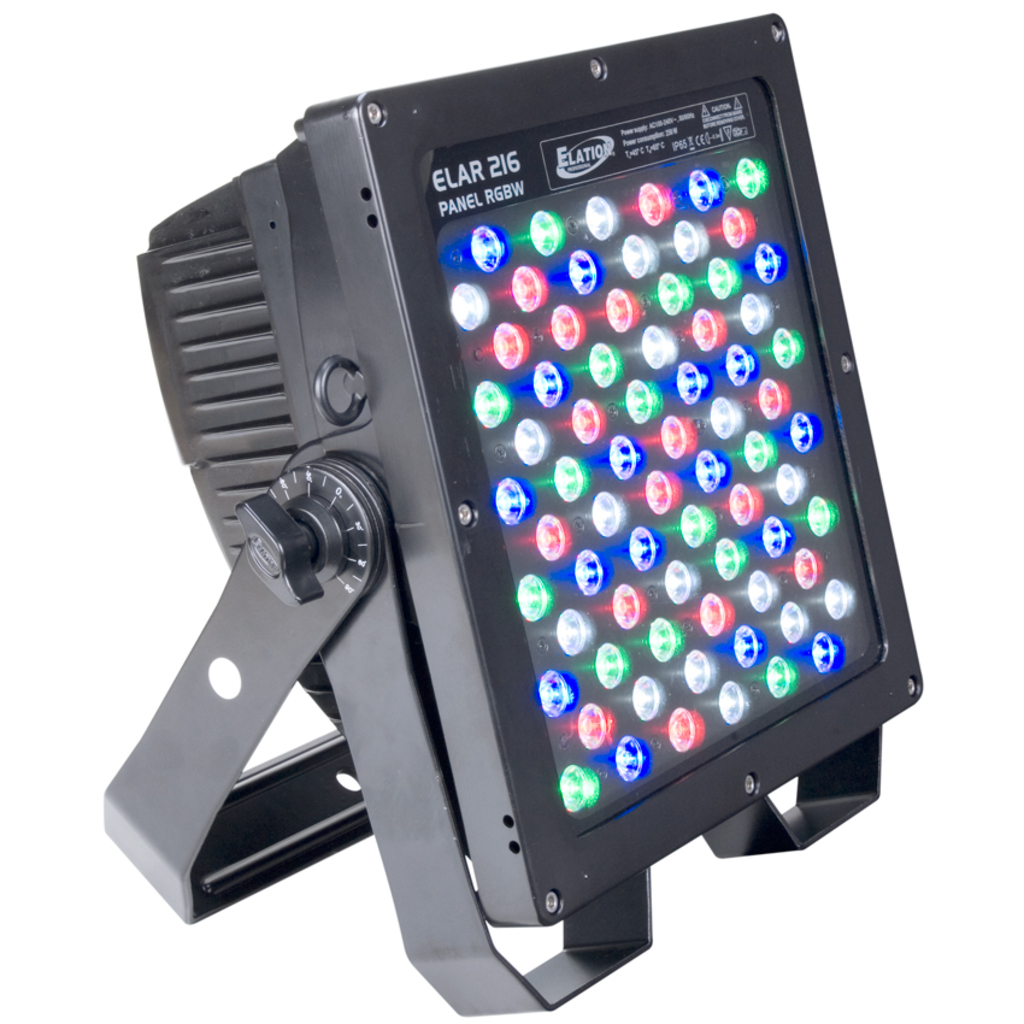

ELAR 216 PANEL RGBW
ELAR 216 PANEL RGBW
Colors
72 x 3W LEDs
Linear RGBW color mixing, infinite color possibilities
Shutter/Dimmer
Strobe: 25 ?ashes per second
0-100% continuous dimming
Light Source
Lux: 10,430 lux / 969 fc @ 2.5m / 8’ @ full
72 x 3W LEDs
18 Red, 18 Blue, 18 Green, 18 White
LED Life: Rated 100,000 hours
Optical System
10° beam angle, 22° field angle
Control
DMX channels: 4 DMX modes - 4/5/7/9 Channels
USITT DMX-512
Built In color macros, auto & manual control
7 built-in programs
Software Update via SUP (E-Loader) Box
Operation Parameters
Maximum Ambient Temperature: 113°F / 45°C
IP Rating: IP65
Rugged die cast aluminum case design
Power Supply
Ballast: Electronic Switching Power supply
Power Supply: 100-240V 50/60Hz
Power Consumption: 250W
Connectors
3 Pin & DMX
Dimensions and Weight
Dimensions: (L x W x H) 13” x 7.75” x 15” / 341 x 197 x 377mm
Weight: 26.5 lbs. / 12 Kgs
Optional Accessories
E-Loader: software update
cETLus pending approval
Downloads
