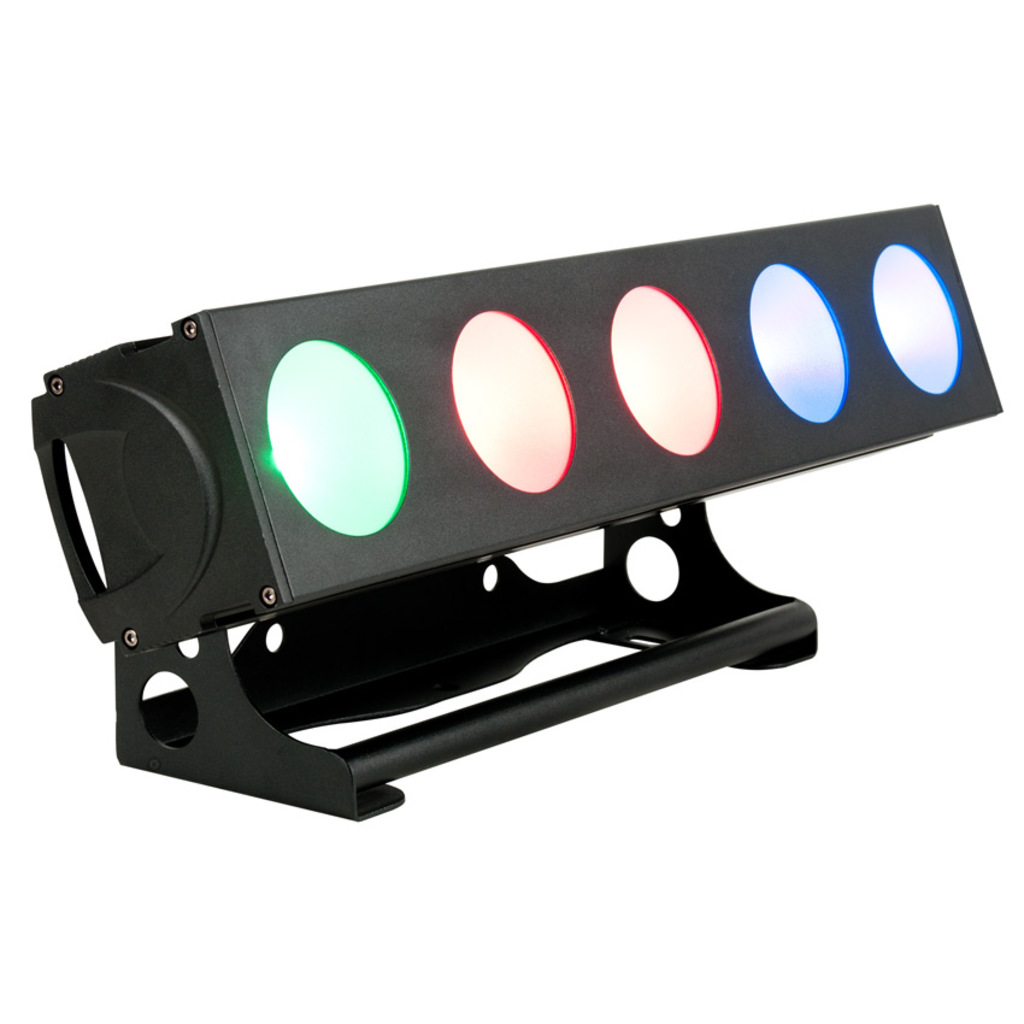

CUEPIX STRIP TRI

The new CUEPIX Strip Tri features (5) long life 30W 3-in-1 RGB COB LEDs, a 60° beam angle, RDM (Remote Device

Management), individual control of each COB module, variable and selectable dimming curves, strobe and zone chase effects,

flicker free operation for TV and Film, 3pin and 5pin DMX and powerCon in/out connections, LCD menu display with

4 button control panel, integrated rigging bracket , and a multi-voltage universal auto switching power supply (100-250v).

SOURCE

- (5) 30W 3-in-1 RGB COB LEDs
- 100,000 Hour Average Life

PHOTOMETRIC DATA

- 1169 Max LUX (109 fc) @1M (Red LEDs)
- 1199 Max LUX (111 fc) @1M (Green LEDs)
- 1880 Max LUX (175 fc) @1M (Blue LEDs)
- 4170 Max LUX (387 fc) @1M (Full On)

FEATURES

- High Power Long Life 3-in-1 RGB COB LEDs
- 60° Beam Angle / 80° Field Angle
- Color Mixing + Individual Control of Each COB Module
- Dimming : 0% - 100% of Each COB Module
- Strobe and Zone Chase Effects
- RDM (Remote Device Management)
- Flicker FREE Operation for TV and FILM
- Stand Alone Operation with Master/Slave Function
- Integrated Rigging Bracket

EFFECTS

- Variable / Selectable Dimming Curves
- Auto Chase and Zone Program Macros

CONTROL / CONNECTIONS

- 5 DMX Channel Modes (3 / 6 / 7 / 15 / 19)

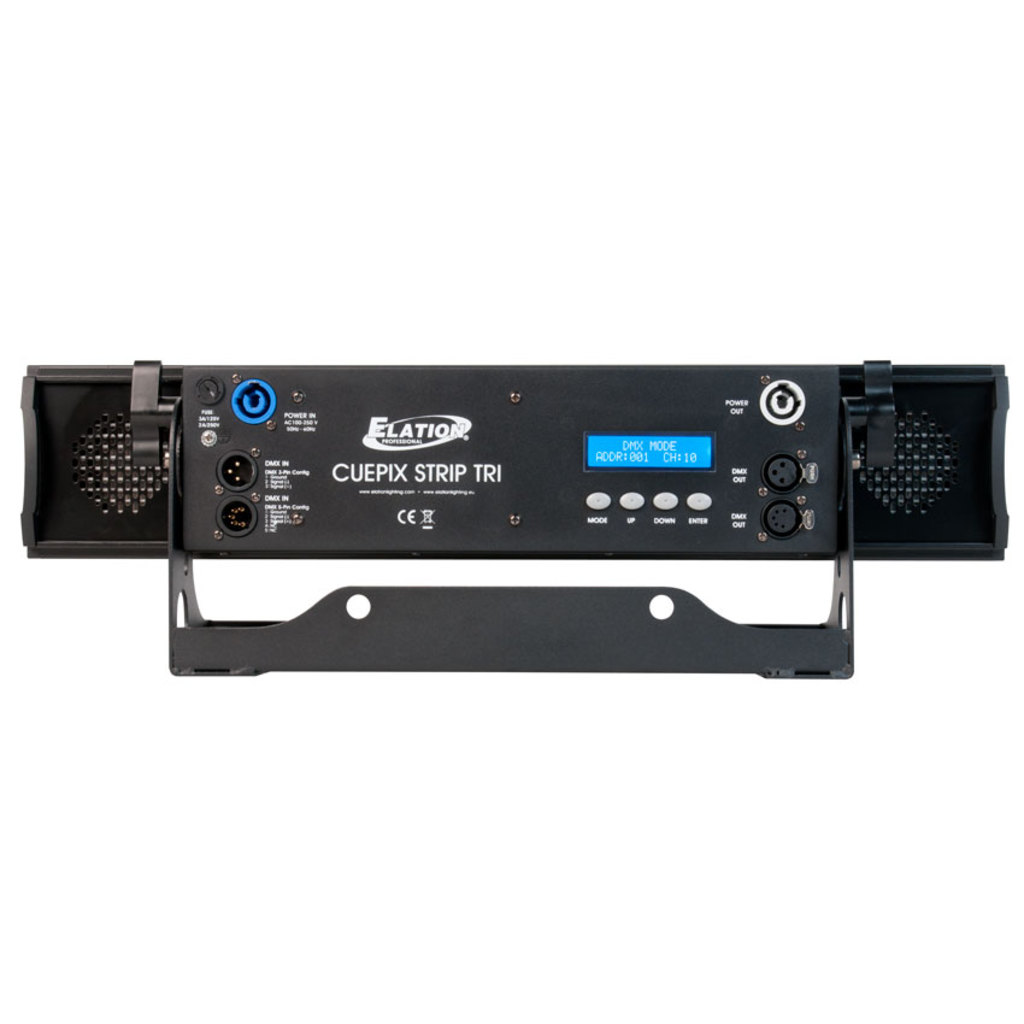

- 4 Button Control Panel and LCD Menu Display
- 3pin and 5pin DMX In/Out
- RDM (Remote Device Management)
- powerCON Power In/Out

SIZE / WEIGHT

- Length: 21.7” (550 mm)
- Width: 6.3” (161.2 mm)
- Horizontal Height: 6.8” (172.5 mm)
- Weight: 13.9 lbs. (6.3 kg)

ELECTRICAL / THERMAL

- AC 100-240V - 50/60Hz
- 150W Max Power Consumption
- -14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS

- CE Approved
- cETLus pending
- RoHs Pending
- IP20 Rated

INCLUDED ACCESSORIES

- (1) powerCON Cable

OPTIONAL ACCESSORIES

TRIGGER CLAMP

- SKU# TRIGGER CLAMP

powerCON LINK CABLE

- 3' (0.91m) SKU# PLC3
- 6' (1.83m) SKU# PLC6
- 10' (3.04m) SKU# PLC10
- 15' (4.57m) SKU# PLC15

Downloads

- Dimensional Drawings
