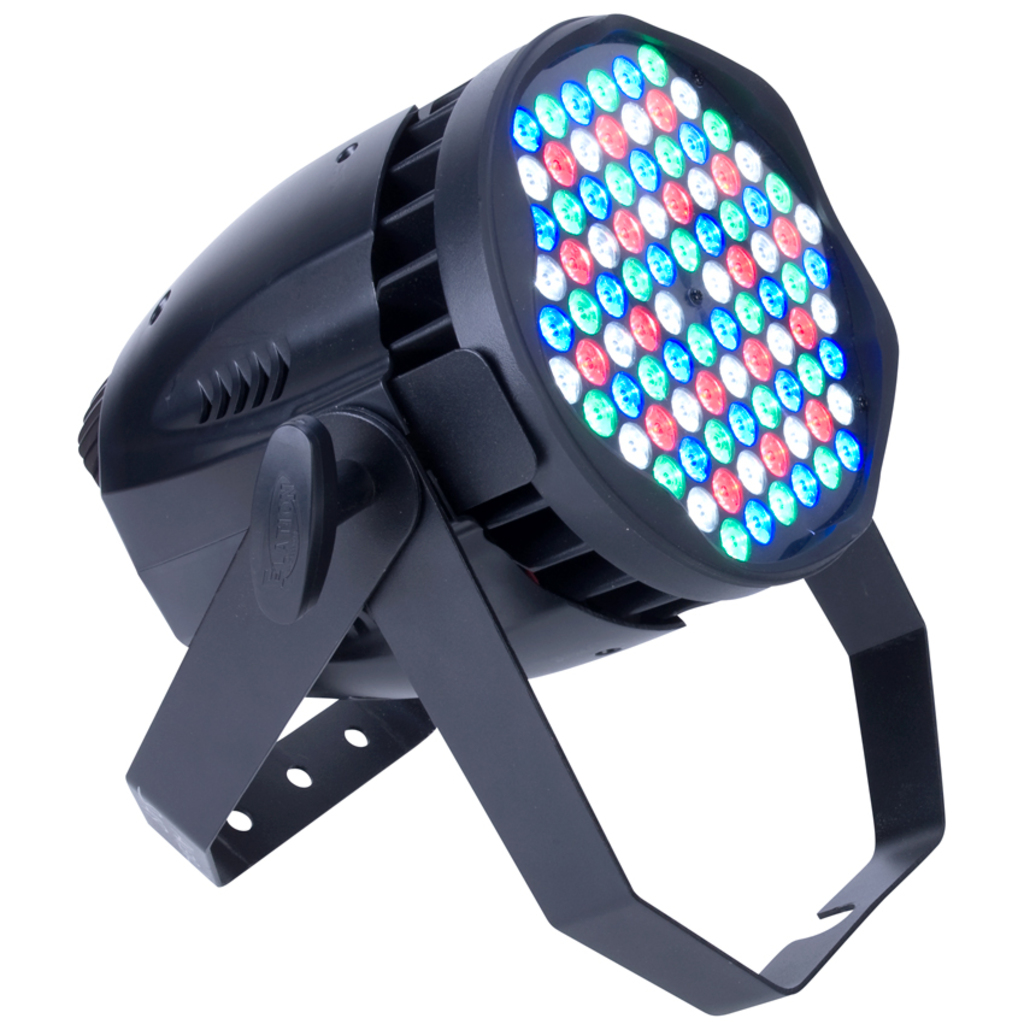

Arena Par



FEATURES



-Die Cast Aluminum RGBW LED Par Can

-DMX intelligent RGBW LED wash

-90 x 3W LEDs

-15º standard beam angle

-Rated IP 20

-Case Color: Black

-Cooling: Fan Cooled

-Electronic power supply

-Electronic dimming (0-100%)

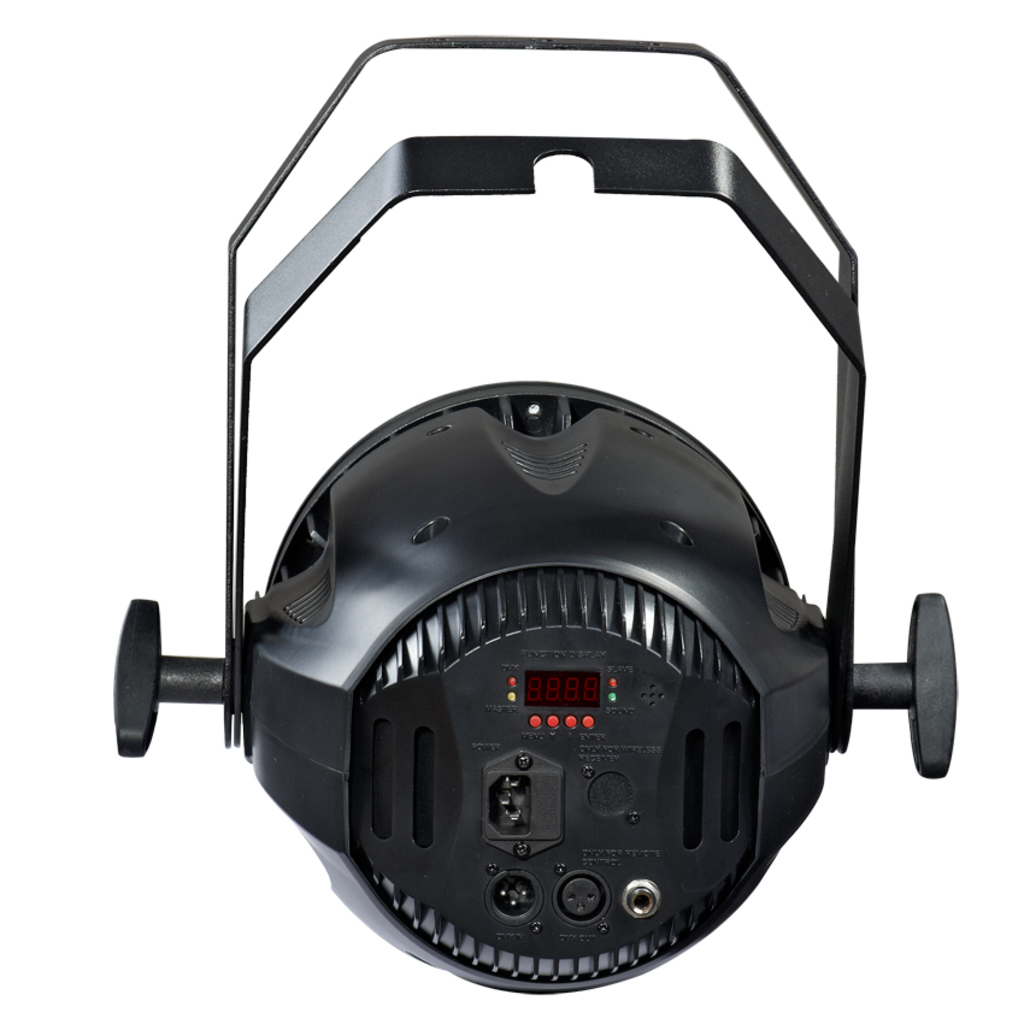

-4 Digit LED display

-DMX controllable via 3 DMX modes: 4, 5, & 7

-Macros: Yes (7 Ch. mode)

-Master/Slave

-On Board Control

-Stand Alone

-Flicker Free


TECHNICAL SPECIFICATIONS



-DMX Channels: 3 DMX modes: 4, 5, & 7

-Control: USITT DMX-512, 3 pin XLR data input & output

-Dimmer: Master Dimmer (7 ch mode)

-Strobe: Yes

-IP Rating: IP 20

-Power Supply: 100 - 240v, 50/60Hz

-Power Consumption: 280W

-Ballast: Electronic

-Cable / Plug Type: IEC input pnly

-Approvals: CE Approved

-Lamp: 90x 3W CREE XP-E LED - 18x Red, 24x Green, 24x Blue, 24x White

-Lamp Life: 50,000 hrs. life

-Lux: 11800 Lux @ 3M @ Full

-Dimensions: (L x W x H) 9.25” x 11.75” x 10.5” / 234 x 299 x 265mm

-Weight: 18 lbs / 7.9 kg

-Rigging: Split Yoke Bracket /safety and data cable optional





Downloads



- DMX Chart



- User Manual



- Photometric Data



- Cut sheet



- IES Files
