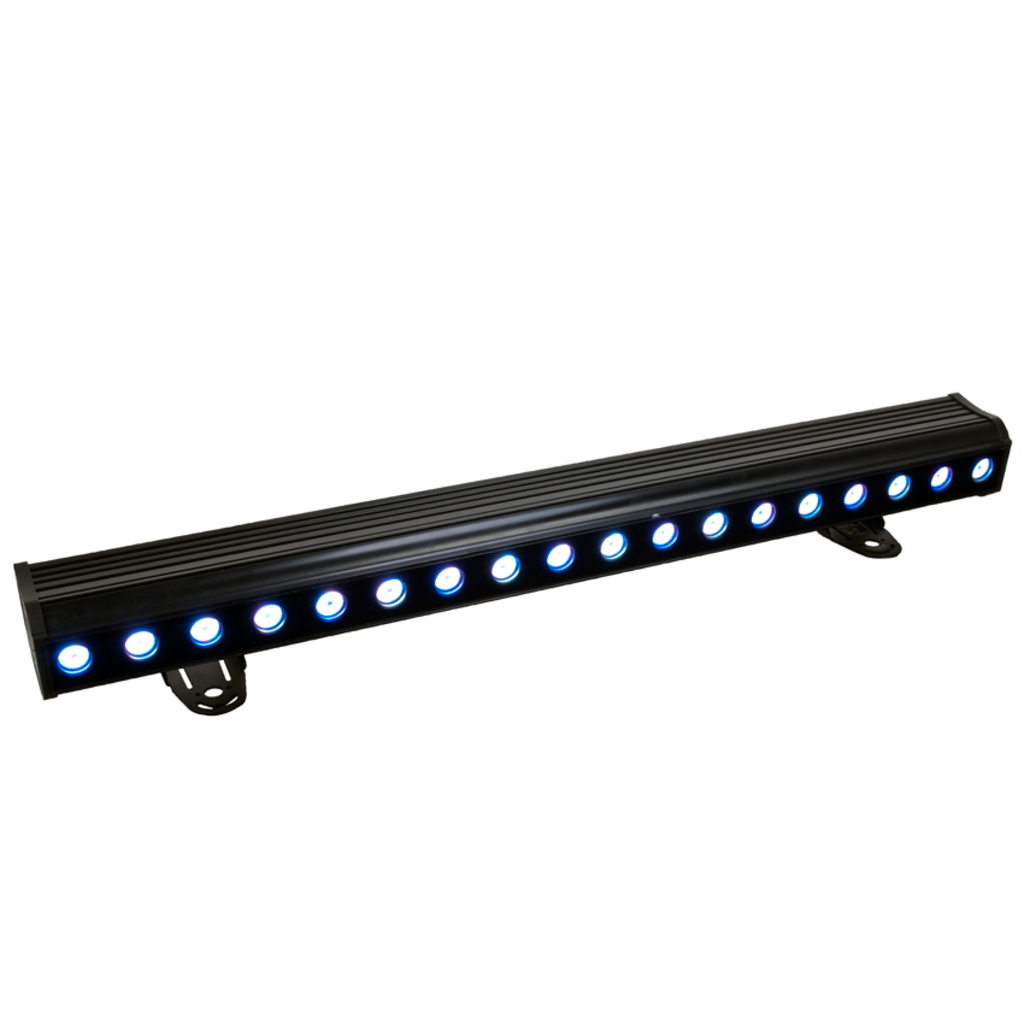

ELED QA Strip (18x5W Quad)



ELED QA Strip



Specifications



- Total LEDs 18x 5W Quad LEDs 1 Meter Strip (Red, Blue Green and Amber LED’s)
- Four Operating Modes: DMX Control, Program Control, Color Macro Control & Single Color Control
- 9 DMX Channels: 1, 2, 4, 5, 7, 8, 36, 54 or 72
- 68 built-in Color Macros
- 3-button LED display on rear panel
- Strobe & Pulse LED Effect
- DMX-512 Protocol
- 3 Pin and 5 Pin
- Electronic Dimming: 0 - 100%
- Daisy Chain Units together in DMX Mode
- Voltage: 100V ~ 240V/47~63Hz
- Safety hook on rear unit
- Powercon in/out link
- Power Consumption: 150W
- Fuse: 3.15 Amp
- Weight: 21 lbs./ 9.5 kgs.
- Dimensions: 40.25” (L) x 8.5” (W) x 9” (H) / 1019 x 210 x 226mm
- cETLus approved



Specifications subject to change without notice.



Downloads

- User Manual

- IES Files

- Photometric Test Report
