Platinum Spot 35R PRO

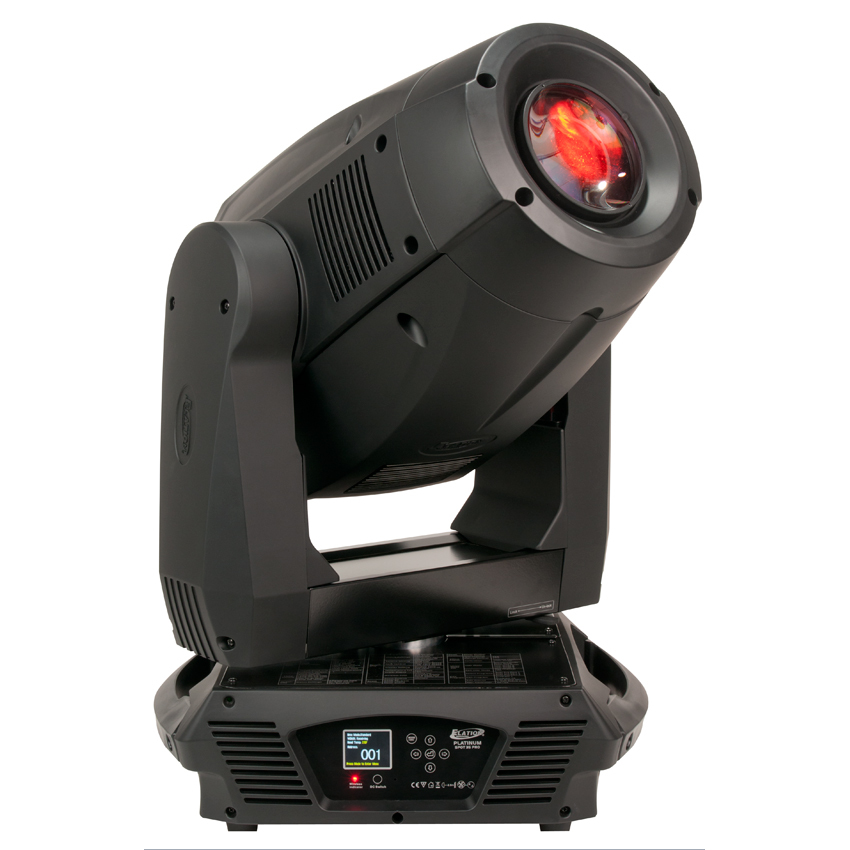

The new Platinum Spot 35 PRO features the MSR Platinum 35, 800-watt lamp from Phillips™,

16-bit resolution on all motor functions, 2 gobo wheels with a total of 12 interchangeable glass

rotating / indexing gobos, variable CMY & CTO color mixing, a static dichroic color wheel with 8

interchangeable colors (including UV), 3 facet rotating / indexing prism, frost filter, motorized

focus / zoom system with an 8° to 50° range, rotating / indexing animation wheel effect, pan/tilt lock,

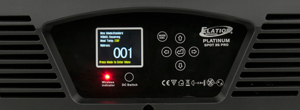

built-in EWDMX wireless DMX receiver, 3 & 5pin DMX connections, full color 180° reversible menu

display with 6 button touch control panel, battery backup for display power, and a multi-voltage

universal auto switching power supply (100-240v).



FEATURES

- 540°/630° Pan

- 245° Tilt

- Pan/Tilt Lock

- 8 / 16 Bit Resolution Adjustable Movement

- Motorized Focus

- 7 Auto Program Macros

- 6 Button Touch Control Panel

- Full Color 180° Reversible Menu Display

- EWDMX Wireless DMX Receiver

- Microphone for Sound Activated Programs

- Rechargeable Backup Battery for Menu Display

- Stand Alone Operation with Master/Slave Function

- Software Upload via Optional External DMX Accessary



LAMP

- Philips 800-Watt MSR PLATINUM 35

- 55,000 Lumen, 7,800k, >75 CRI, 750 Hour Average Life



PHOTOMETRICS

- Max 76,880 LUX @5M 8° Min Zoom

- Max 2,725 LUX @5M 50° Max Zoom



EFFECTS

- Frost Filter

- Animation Wheel Effect

- Motorized Iris: 5% - 100%

- Two Direction Rainbow Effect

- Mechanical Dimming: 0% - 100%

- High Speed Mechanical Shutter / Strobe

- 3 Facet Rotating Prisms with 16 Prism Macros



COLOR

- Variable CMY & CTO

- 8 Static Dichroic Colors Including UV + White (Open)



GOBOS

- 2 Gobo Wheels With 12 Total Interchangeable Glass Rotating / Indexing Gobos

- Size: OD 29mm / ID 24mm

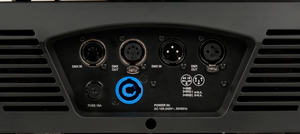

CONTROL / CONNECTIONS

- 3 DMX Channel Modes (27 / 29 / 41)

- 3pin & 5pin DMX In/Out

- powerCON Power In



SIZE / WEIGHT

- Length: 19.9” (506.5mm)

- Width: 17.6” (447.3mm)

- Vertical Height: 28.6” (726.5mm)

- Weight: 79 lbs. (36kg)

-

ELECTRICAL / THERMAL

- AC 100-240V - 50/60Hz

- 1200W Max Power Consumption

- -13°F to 113°F (-25°C to 45°C)



APPROVALS / RATINGS

- CE Pending

- cETLus Pending

- IP20 Rated



NOTE: Specifications and improvements in the design of this unit are subject

to change without any prior written notice.





Downloads

- Dimensional Diagram

- DMX Traits

- Photometric Data

- Vector works File 2013

- CAD File

- Specification Sheet
