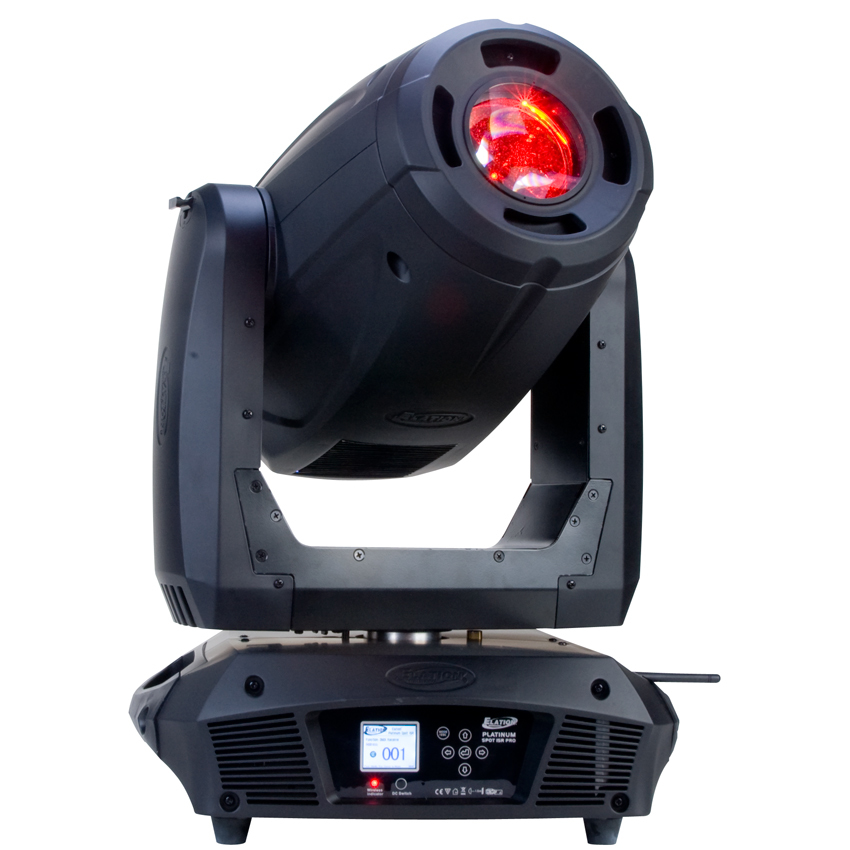

Platinum Spot 15R PRO



ELATION PROFESSIONAL - PLATINUM SPOT 15R PRO



Features

 - New 300W MSD Platinum 15R Lamp

- Comparable Output To 700W And 1,200W Fixtures

- 1/3 Size of 1200W Fixtures And 1/4 Power Consumption

- CMY Color Mixing System

- Variable Zoom (3 To 1)

- Increased Speed on All Motors

- Superior Optics Flat / Even Light Field And

- Improved Output

- Hybrid Technology – Spot / Wash

- EWDMXR Built In

- Featuring New Philips MSD Platinum 15R Lamp



Technical Specifications

 - CMY 16 bit Color Mixing

- 8 Dichroic Colors

- 22 Gobos

- 8 Rotating Replaceable Gobos

- 14 Static Gobos

- Gobo Size:

- Glass Gobo: 16.3 mm outer diameter and 10mm image diameter

- Metal Gobo: 16.3 mm outer diameter and 11mm image diameter

- 3 Facet Rotating Prisms

- Motorized Iris

- Variable Frost Filter (Hybrid Effect for Wash)

- 9° to 27° Variable Zoom Beam Angle

- Motorized Focus

- Variable speed Shutter / Strobe

- Mechanical Dimmer 0-100%

- Pan/Tilt: 540/630 x 265

- Power W MAX / 120v-240V 50/60hz

- EWDMX Wireless DMX Receiver Built in

- 3 DMX Modes – 23 / 21 / 34 Channels DMX

- 3-pin & 5-pin DMX

- 10,500lux / 975 fc @ 16’

- Weight: 48.9lbs

- Dimensions (LxWxH): 16.1” x16.5” x21.3 ”

- Lamp: MSD Platinum 15R Philips 1,500hr 13,500lux 8,000k CRI 75

- cETLus listed



Downloads

- Dimensional Diagram

- Cut Sheet

- DMX Traits

- User Manual

- Photometric Data

- CAD File
