LPC-48V / LPC- 96V

LPC-48V AnD LPC-96V

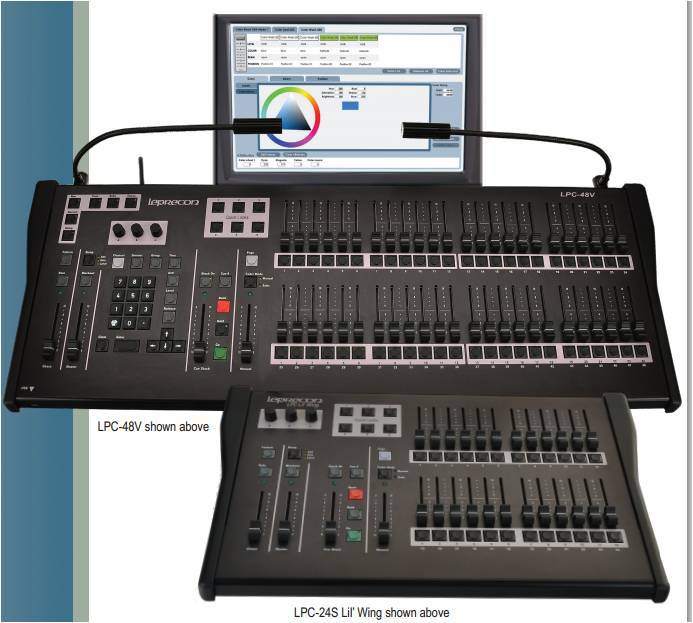

Leprecon Version III LPC-48V with encoders is an affordable lighting console designed for small to

medium lighting systems. Using a VGA monitor or touchscreen, the console easily controls LED

fixtures, Moving Light fixtures, and conventional dimmers using faders. Use the LPC console's six

“Quick Looks” for bringing up work lights or setting a look with the push of a button.

The new Version III LPC-48V features three front panel encoders for setting color, beam and position

parameters in addition to many other functions, Version 3 software features an enhanced programming

interface for easier recording, and supports DMX over Ethernet using the universal Art-Net protocol.

The easy learning curve makes it perfect for volunteers, students and professionals.

Applications:

Theatre, houses of worship, school, rental, production, corporate events.

VGA monitor required, touchscreen optional.

Ships with power cord, vinyl cover, and 2-12" 4 pin XLR right angle Littlite® brand gooseneck lamps.

Features:
- Preset Mode: 24/48 faders, 24/48 submasters or 48/96 single scene faders
- 24 or 48 Submasters x 20 pages for 480 or 960 total Submasters
- Two Scene Mode: 24/48 faders per scene with Manual crossfader
- Front panel encoders for setting LED and automated fixture parameters
- Bump modes include: Solo, Add, and Latch w/fade
- 6 “ Quick Looks” button playbacks with fade times
- Cue Stack with 1000 cues

- 512 board channels (48/96 faders, 464/416 virtual)
- Two DMX-512 outputs using 5 pin XLR connectors
- 2048 DMX channels via Art-Net over Ethernet
- Supports one VGA monitor
- Support for 15” or 19” ELO Touchscreen monitor

Software features:
- Easy to use Graphic User Interface for programming Submasters, Cues, Chases
- “Preview” in Run mode for inspecting and editing Cues and Submasters
- Color, Beamand Position labels for automated fixture and LED control
- Individual fade times for Color, Beam and Position
- ColorMixer control for RGB/CMY fixtures
- EffectsGenerator for Color, Beamand Position ofML and LED fixtures
- Built-in extensiveML& LED fixture library
- Off-line editor available for any Windows platform
- Littlite® dimmer supports LED or incandescent work lamps

Mechanical:
- VGA Output
- 2 Ethernet ports (1 port dedicated to Art-Net)
- 2 - 5 pin XLR DMX out connectors
- 2 - 4 pin XLR for Littlite® work lamps - included
- 3 USB connectors
-  Universal AC Power 100-240V with IEC power cord
- Optional built in wireless DMX transmitter compatible with W-DMX

LPC-24S

Features:
- Preset Mode: 12 faders, 12 Submasters or 24 Single scene faders
- 12 Submasters x 20 pages for 240 total Submasters
- Two Scene Mode: 12 faders per scene with Manual crossfader
- Three encoders for setting LED and automated fixture parameters
- Bump modes include: Solo, Add, and Latch w/fade
- Six “Quick Looks” button playbacks with fade times
- Cue Stack with 1000 cues
- 512 board channels (24 faders, 488 virtual)
- 1024 DMX outputs using 5 pin XLR connectors

Mechanical:
- 2 - 5 pin XLR DMX out connectors
- 1 - 4 pin XLR for Littlite® brand work lamp – included
- Universal AC Power 100-240V w/IEC power cord
- USB cable for connecting to Laptop or PC
