Opti Tri Par

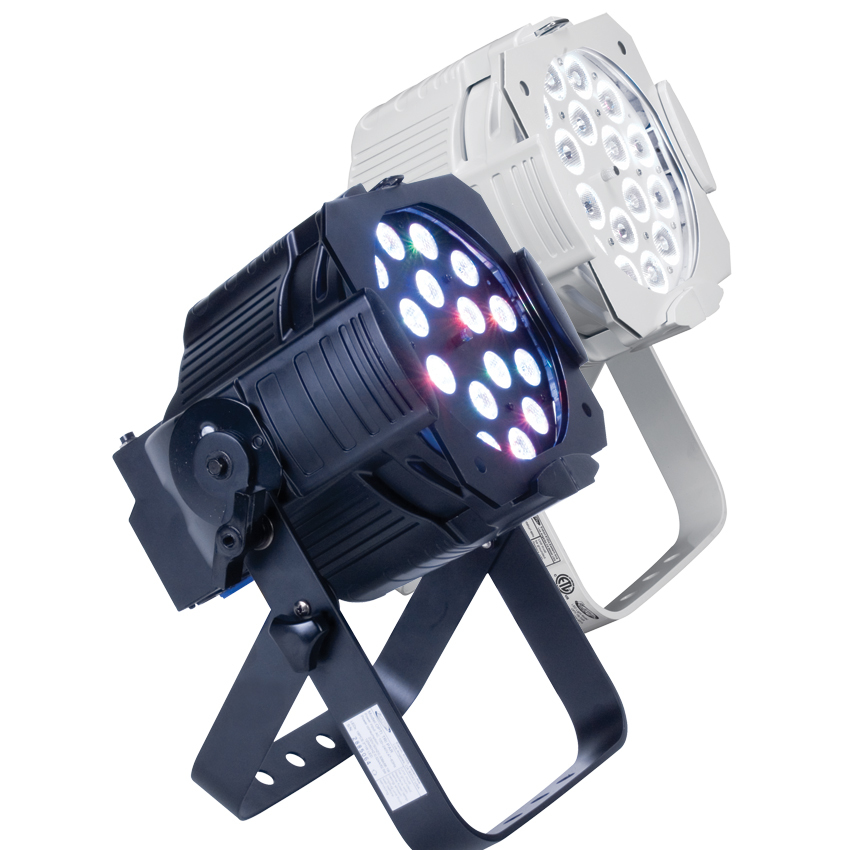

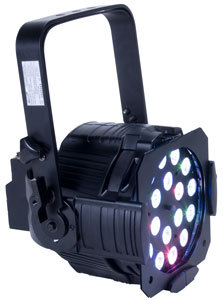

Elation Lighting Opti Tri Par





The Opti Tri Par by Elation Professional is a RBG tri color LED par featuring 18 tri RGB running

at 3W power each. The design of the fixture is optimized providing up to 50,000 hours estimated LED life,

70W power consumption, fan cooled and flicker free operation. The Opti Tri Par is operable via 6 DMX

channel modes: 1, 2, 3, 4, 6, and 7. This unit produces a standard beam angle of 25° and is rated IP 20,

ideal for indoor applications. Control data input is via 5 pin DMX data first in and out connections. This

unit is fully operational in any mounting position. Other features include electronic power supply

90 - 240v, five operating modes and user may daisy chain units together in DMX mode. Gel frame is

included and rigging for this unit includes split yoke bracket for hanging or floor standing, safety and

data cable are optional.

FEATURES

- Die Cast Aluminum LED Par Can w/ Gel Frame holder

- Tri-Color LED Par Can

- DMX intelligent 3-in-1 RGB LED wash

- 18 x 3W LEDs

- 25º standard beam angle

- Rated IP 20

- Case Color: Black and White Standard Options

- Cooling: Fan Cooled

- Electronic power supply

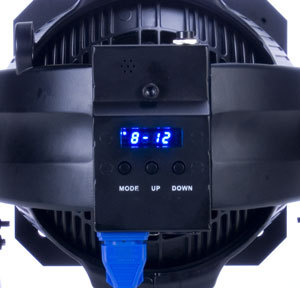

- 4 Digit LED display

- DMX controllable via 6 DMX modes: 1, 2, 3, 4, 6, & 7

- Macros: Yes

- Gel Frame Included

- Master/Slave

- On Board Control

- Stand Alone

- Flicker Free



TECHNICAL SPECIFICATIONS

 - DMX Channels: 6 DMX modes: 1, 2, 3, 4, 6, & 7

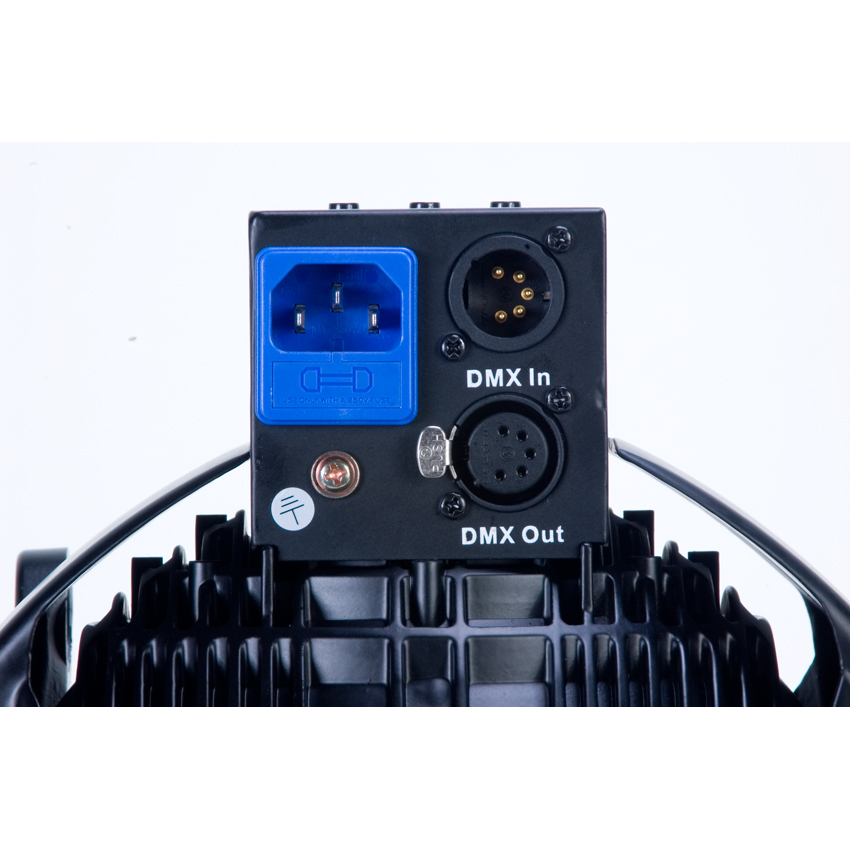

- Control: USITT DMX-512, 5 pin XLR data input & output

- Dimmer: Master Dimmer (7 ch mode)

- Strobe: Strobe effect (1-18 flashes per second)

- IP Rating: IP 20

- Power Suply: 90 - 240v, 50/60Hz

- Power Consumption: 70W

- Ballast: Electronic

- Cable / Plug Type: Locking IEC PPG 120v Supplied

- Approvals: ETL & CE Approved

- Lamp: SSC-Tri RGB, 18 x Tri RGB, 18 x 3W LEDs

- Lamp Life: 50,000 hrs life

- Lux: 518 Lux @ 3M

- Dimensions: ( L x W x H) 11.5” x 8.5” x 8.5” / 292.1 x 215.9 x 215.9mm

- Weight: 11 lbs / 4.9 kg

- Rigging: Split Yoke Bracket / safety and data cable optional



Downloads

- Photometric Data

- Cut sheet

- User Manual
