ELAR 180 PAR RGBAW / WW



Elation Professional ELAR 180 RGBAW (video file)

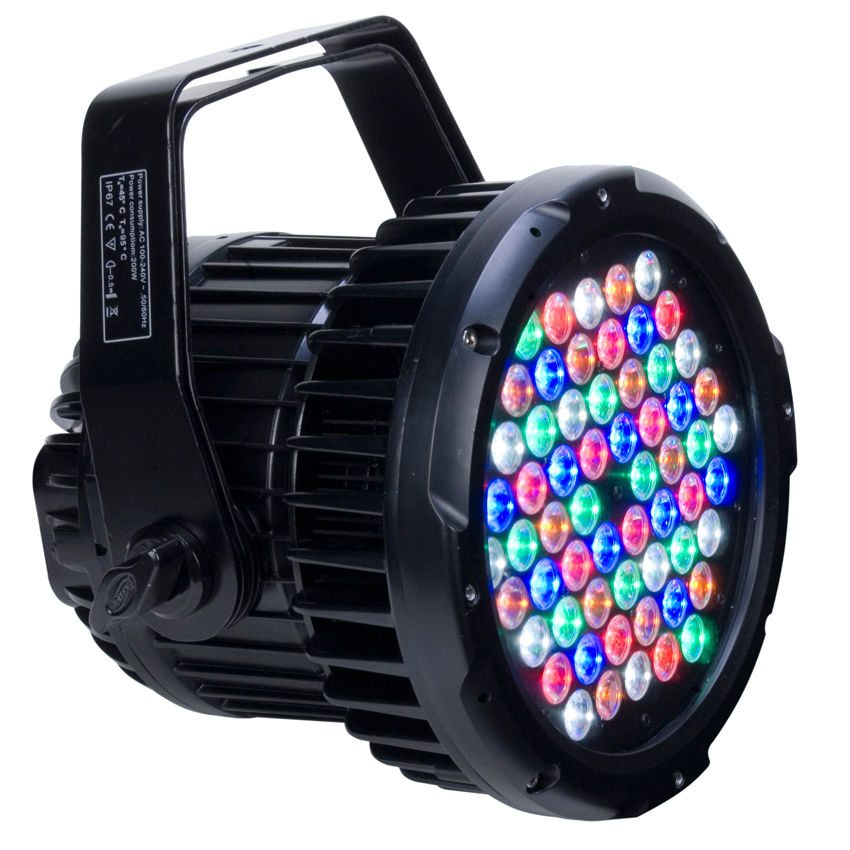

ELAR 180 PAR RGBAW - Sku# EAR494
. High Power Outdoor RGBAW LED Par
. High Power RGBAW IP67 Pro Par
. 60 x 3 Watt RGBAW LED’s 12ea.
. Smooth Color Mixing Flicker Free
. 9° beam angle, 22° field angle with standard 10° lens kits available
. 3 Pin DMX
. Built In Color Macros, Auto & Manual control
. IP Power / Data Link in/out up to 4pcs
. Power 150W MAX / 120v-240V 50/60hz
. Dimensions (LxWxH): 8.9” x 10.5” x 9.1” / 226 x 267 x 232mm
. Weight: 16.5lbs / 7.5 kgs.
. 4 DMX modes – 5/6/8/10 Channels
. 1,621 Total Lumens

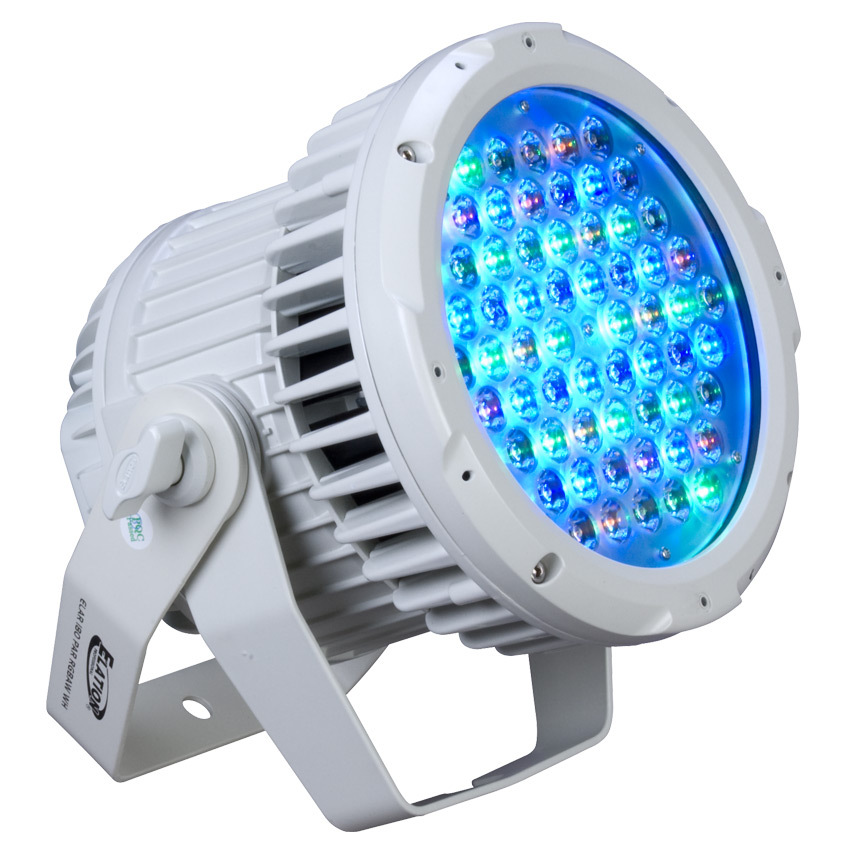

ELAR 180 PAR RGBAW WH - Sku# EAR602 - same as above in WHITE housing

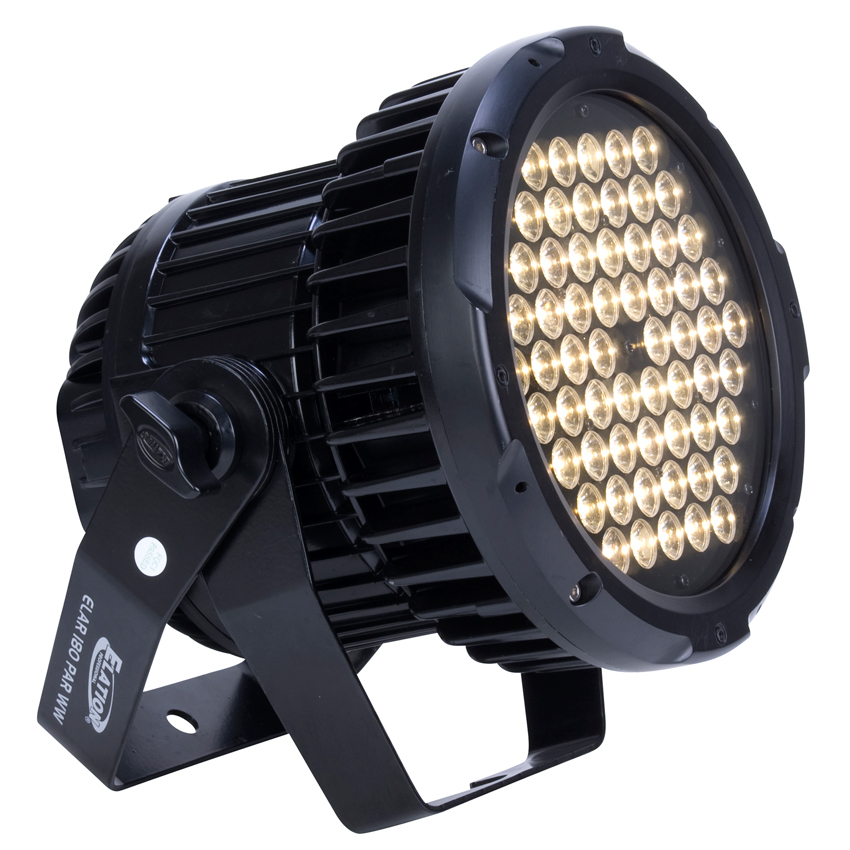

ELAR 180 PAR WW - Sku# EAR565
. High power warm white LED exterior PAR
. 60 x 3 Watt 3,200K LED
. 9° beam angle, 21° field angle with standard 15° lens kits available
. 4 digit LED menu display
. DMX manual and auto mode via control board
. Flicker Free operation
. Rugged die cast aluminum case
. Split yoke up light bracket
. IP power link up to 3 pcs
. IP data link up to 32 pcs
. Separate logic and LED enclosure
. IP65 rating
. Internal heat sink convention cooling
. Power Supply: 100-240V 50/60Hz
. Power Consumption: 240W
. Dimensions: (LxWxH) 8.9” x 10.5” x 9”
/ 226x267x232mm
. Weight: 16.5 lbs. (7.5 Kgs)
cETL us approved

Downloads

- WW Cut sheet

- RGBAW Cut sheet

- WW DMX Traits

- WW Photometric Data

- RGBAW User Manual

- RGBAW DMX Traits

- IES Files

- Photometric Data LM79

- WW / RGBAW Dimensional Drawings

- CAD File
