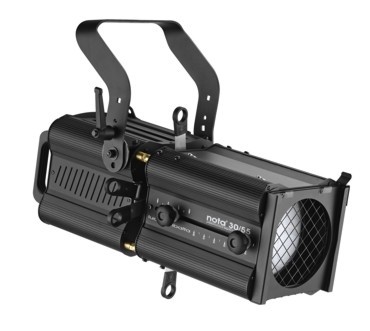

Nota 30/55



Extremely wide-angle 1000/1200W profile spotlight including high-specification double condenser optical system

for clean, crisp gobo projection. The comprehensive feature list includes 30° - 55° zoom focus, rotating gate with

4 shutters, a cranked fork to accommodate acute over-stage rigging angles and a double-microswitch interlock

for safe lamp replacement. A colour frame, safety guard, 4 beam shutters and 2m mains cable are also included.



Technical Details



- Color frame

- Safety guard

- Iris diaphragm

- Gobo holder A/B size

- Hook clamp

- Alu-grip clamp

- Safety bond

- Xpress 19

- Mounting plate 185x185mm



Specification



Optical System: Double condenser + zoom

Reflector: 68mm dia. Glass

Micro switch: Double-pole

Color: Gel Dimension 185x185mm

Throw: 2-12m

Beam angle: 30°-55°





Downloads



- Full catalogue 2012



- NOTA 30/55 pdf data sheet



- NOTA 30/55, fiche technique franç.



- NOTA 30/55, hoja technica, español
